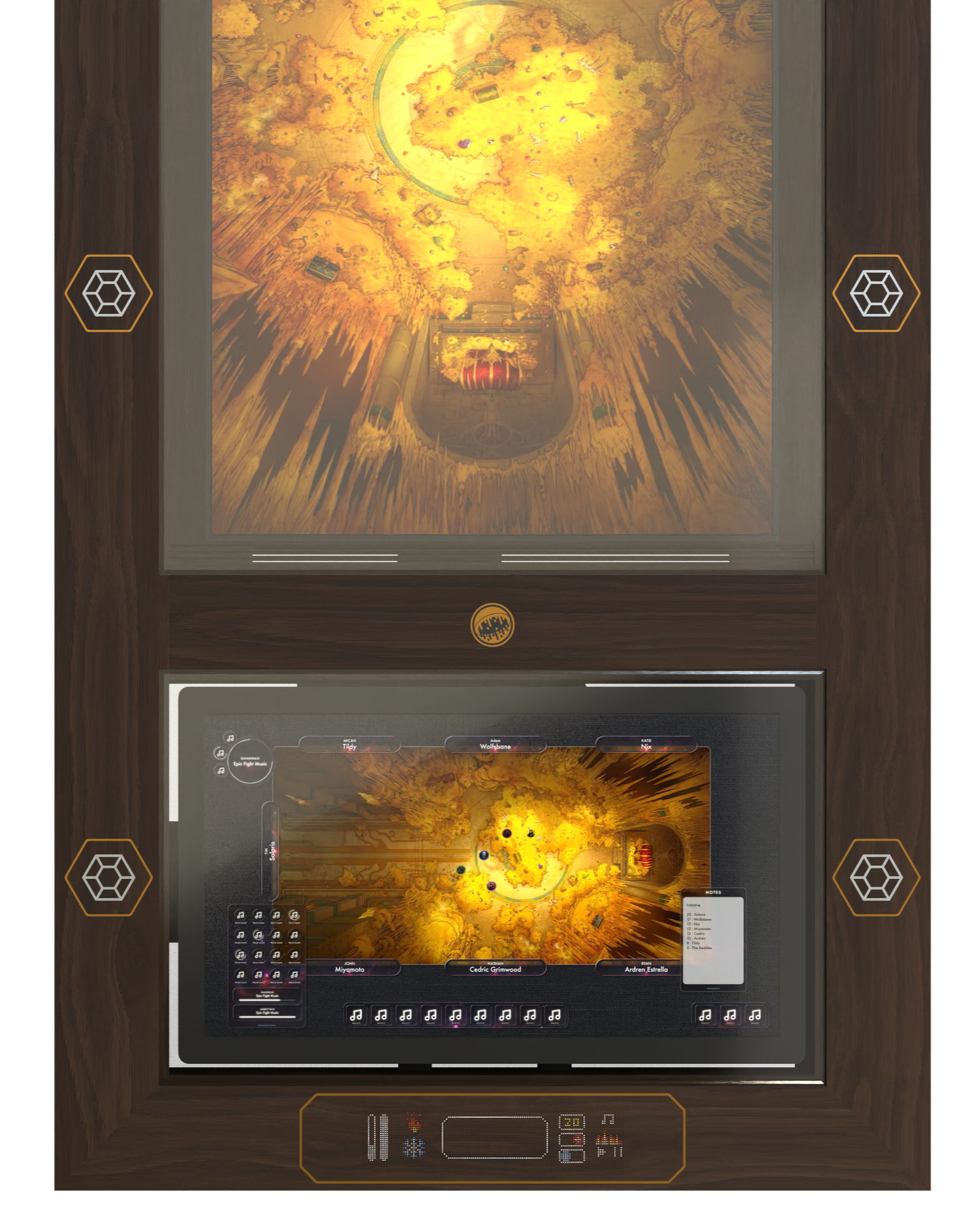

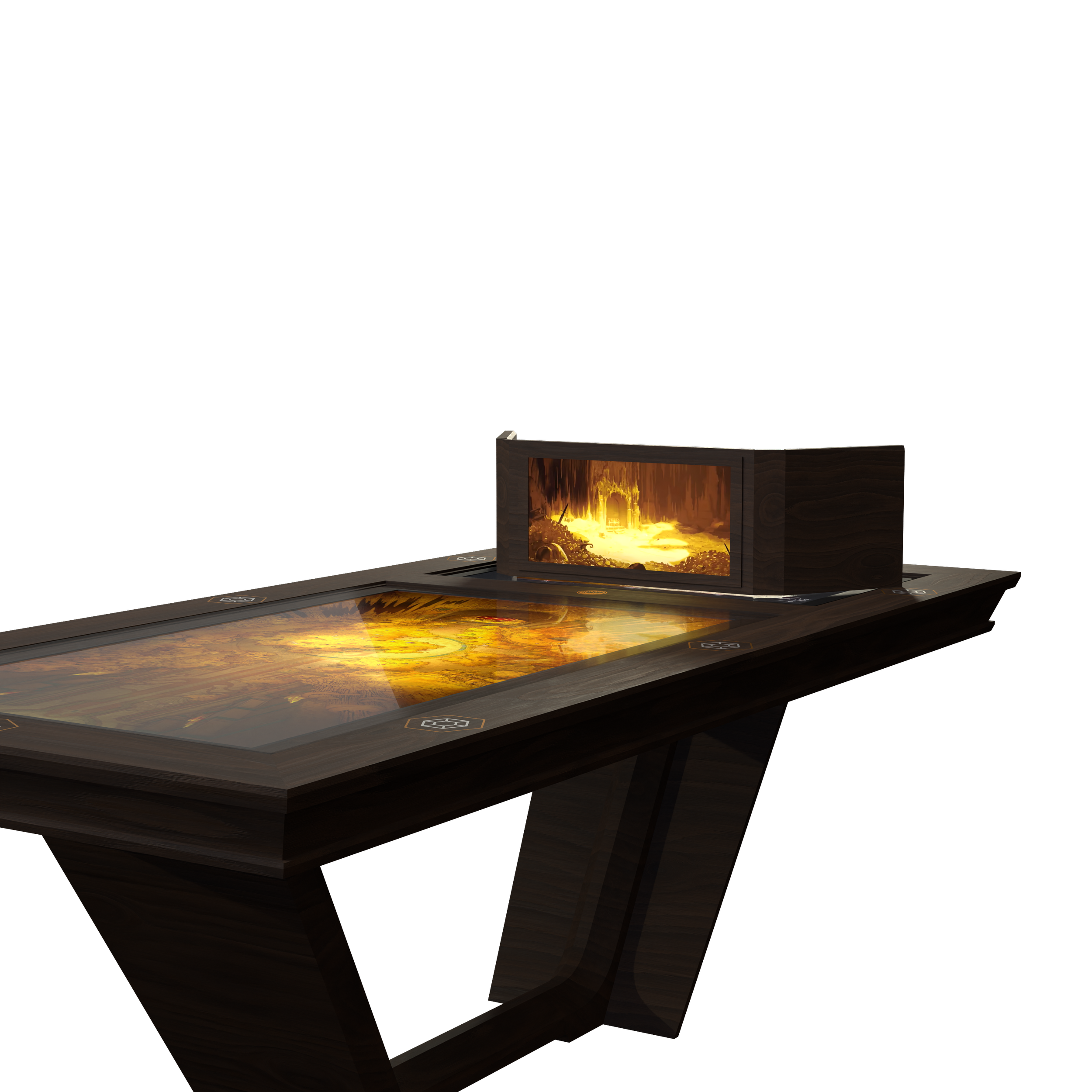

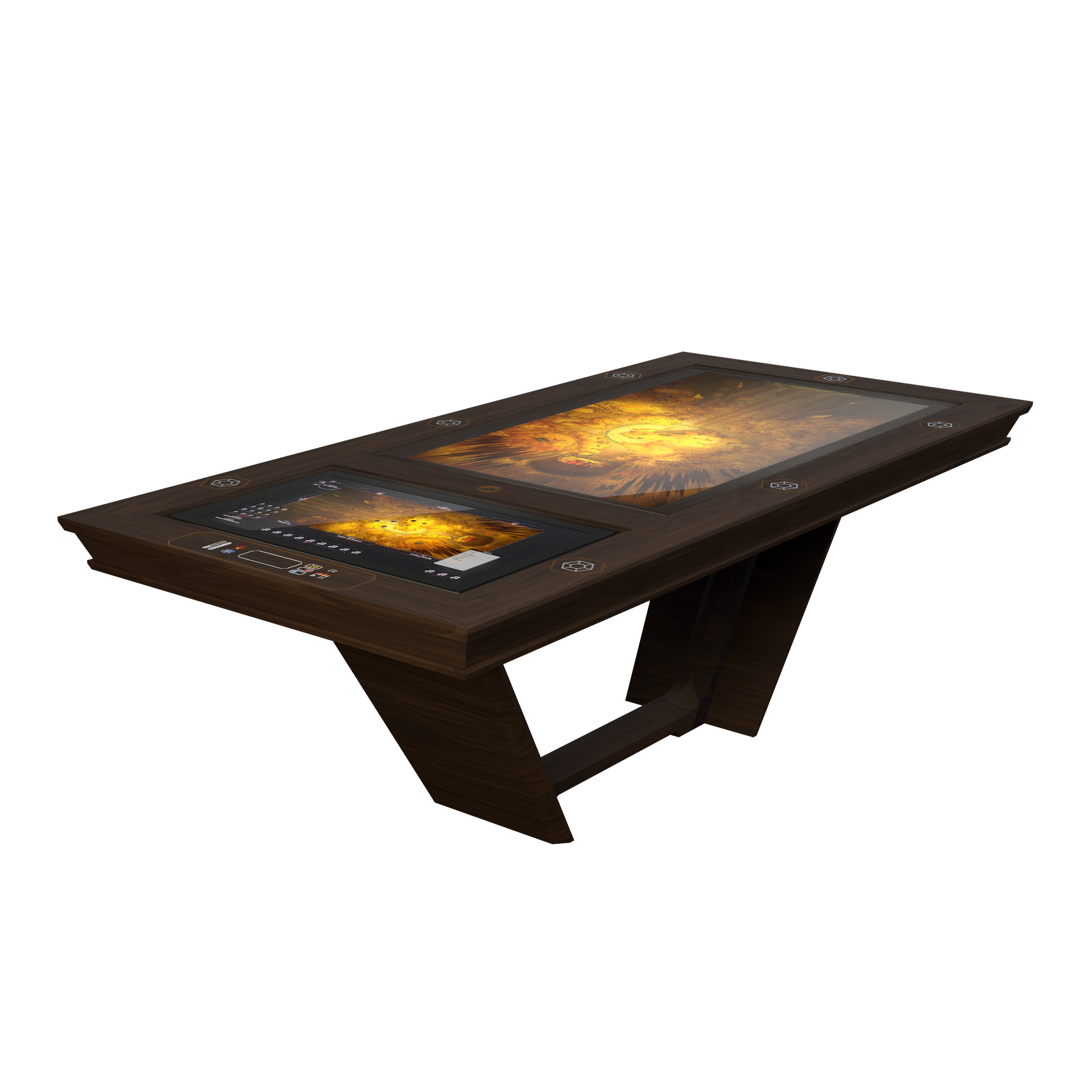

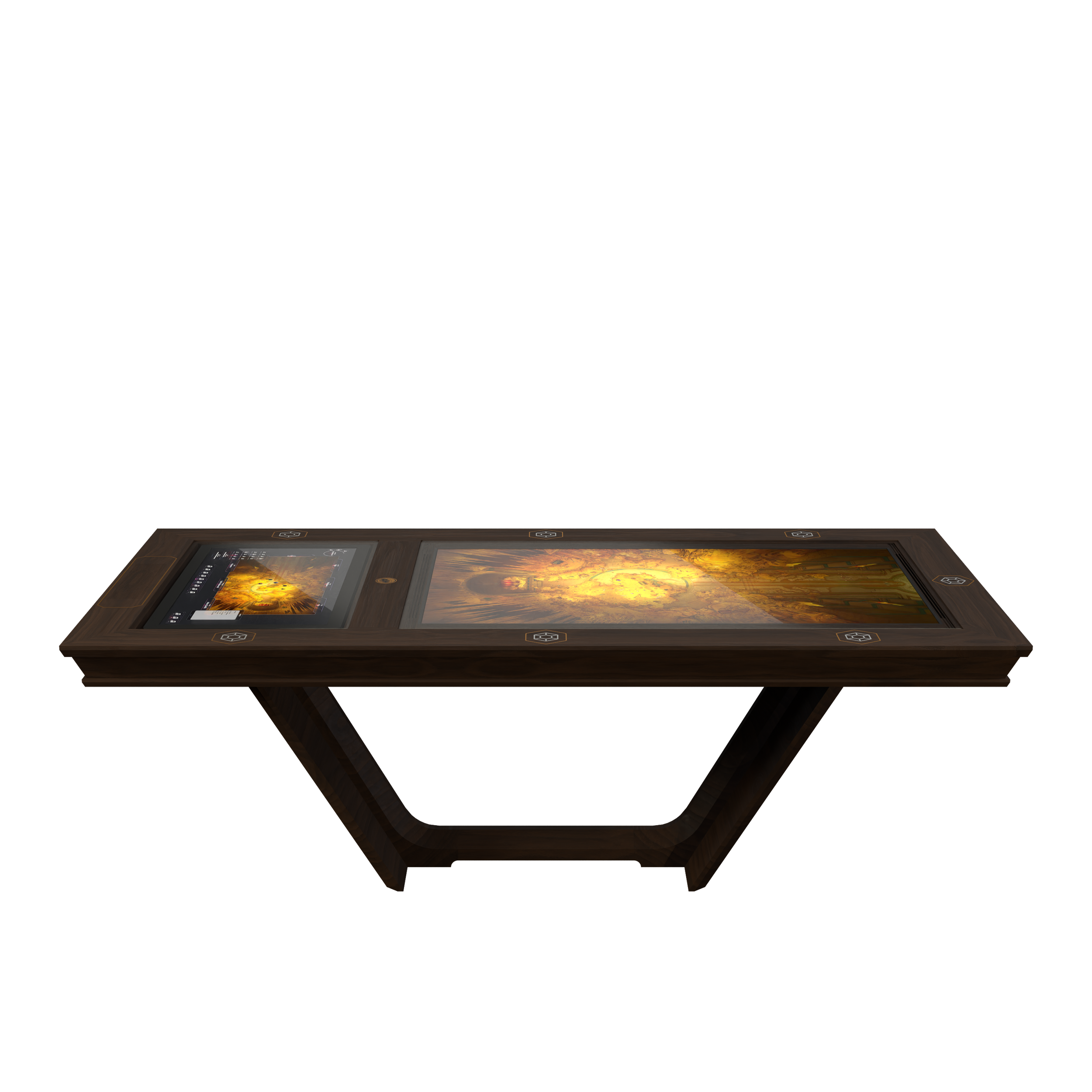

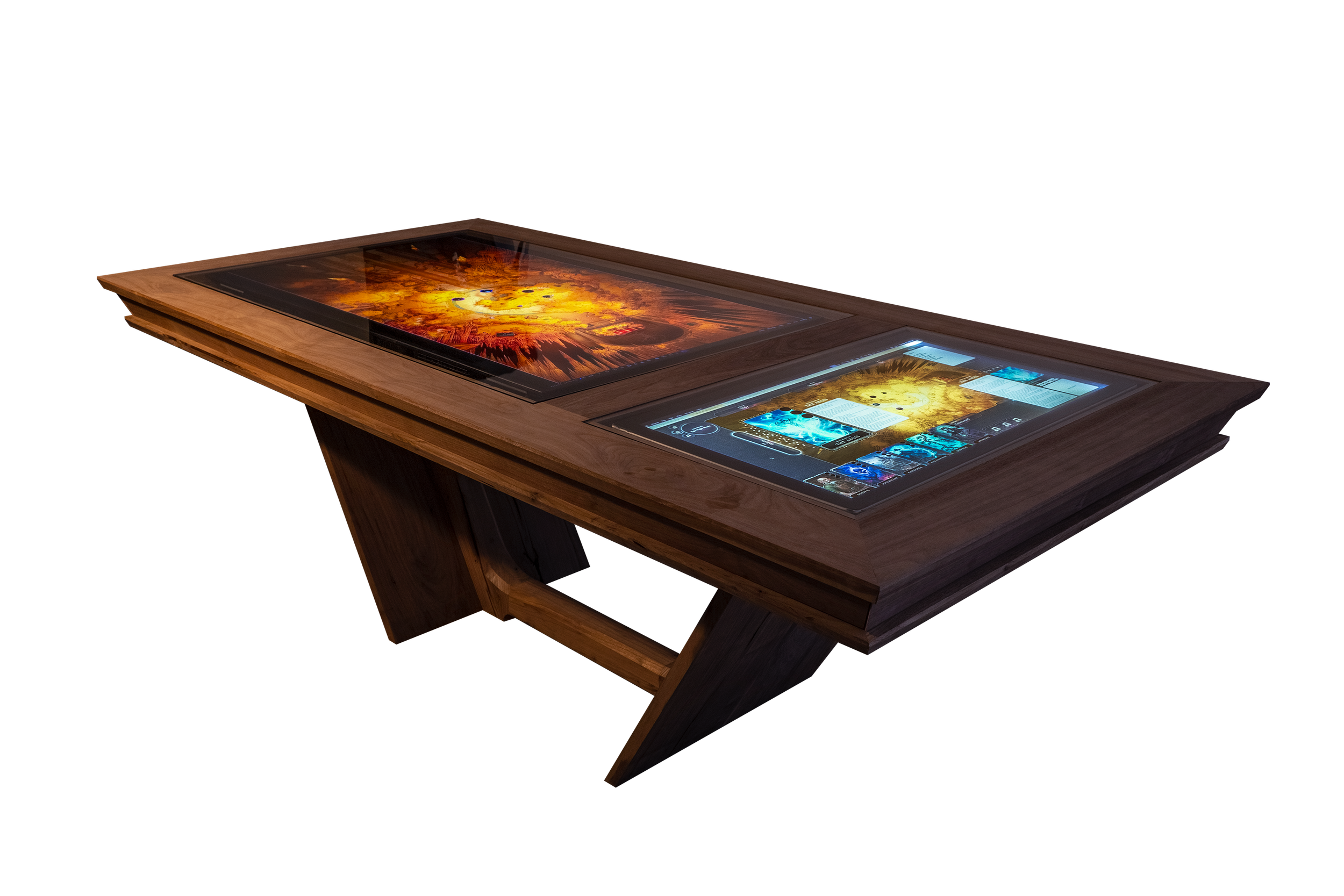

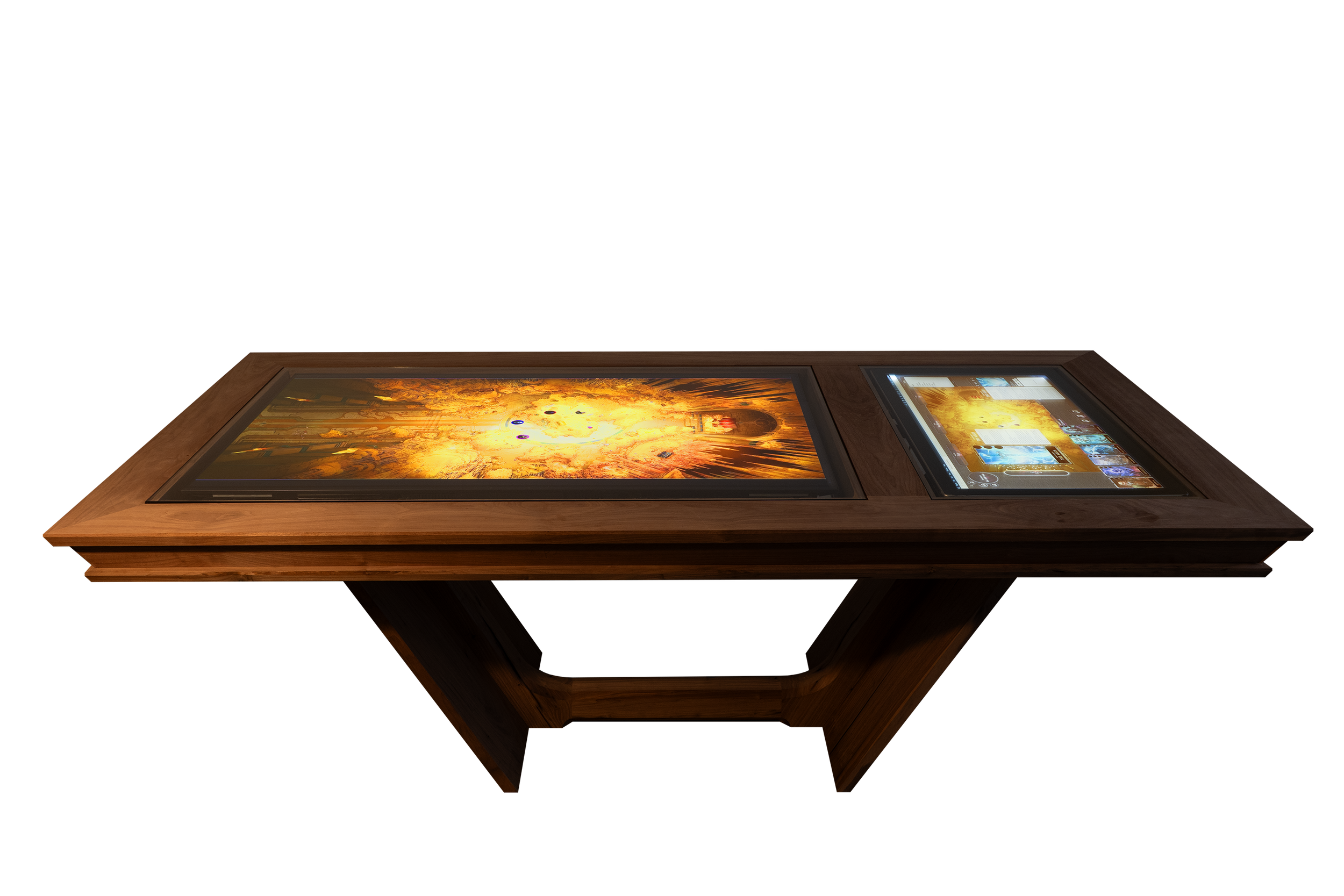

Tabletop Outer Dimensions

86” × 42” × 30”

Custom sizes available upon request

Internal Display Wells

Player Surface: 51" × 32"

DM Surface: 19” × 32”

Depth from glass to display surface: 3/16”

Weight

~200–260 lbs depending on wood species

Primary Play Surface

55" 4K UHD display (3840×2160)

High-brightness panel optimized for ambient lighting

Optional upgrade: 55" OLED for ultra-deep blacks and enhanced contrast

Flush-mounted beneath tempered glass viewing surface

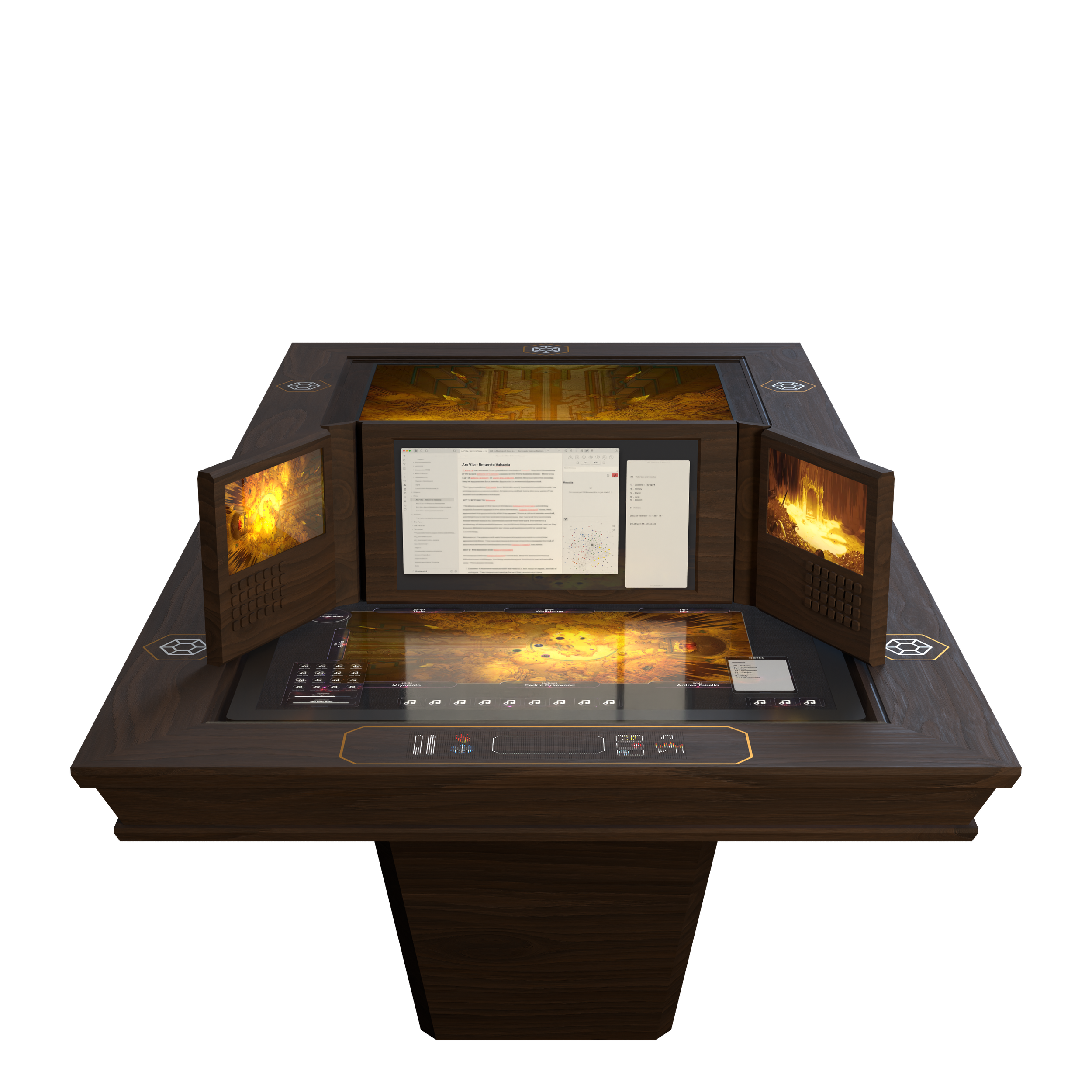

Dungeon Master Command Screen

32" 1080p touchscreen

PCAP multitouch with sub-millisecond responsiveness

Fully integrated with ArchmageOS for:

Fog-of-war and map layer controls

Creature, initiative, and encounter management

Spell, item, and ability quick-access

Multi-viewport management

Hotkeys, macros, and lighting/audio triggers

Digital Grimoire (Optional)

A modular player-facing display system that gives each adventurer their own magical interface.

1x 15” Player Facing Screen

15” (1x) , 7” (2x) DM facing Screens

Ideal for:

• Character sheets

• Inventories

• Spellbooks

• Interactive handouts

• Initiative & conditions

Seamlessly integrates with ArchmageOS Multi-Viewport Mode

Clean cable routing and discreet mounting hardware

Enables immersive, individualized digital engagement without disrupting the tabletop experience

Magic Control Surface (MCS)

Multi-touch gesture support (pinch, zoom, drag, tap)

Illuminated dot-matrix feedback for visual responses and effects

“Arcane Recognition” system detects attuned tokens and objects

Supports automatic player identification, initiative setup, and contextual in-game actions

Integrated into ArchmageOS for fog-of-war control, map manipulation, and encounter tools

Hexagonal Player Control Pads

Up to 7 modular, perimeter-mounted hex pads

Capacitive touch surfaces with integrated illumination

Each pad includes “attunement recognition” for identifying players and their items

Used for:

Character interaction

Ability and spell triggers

Skill checks and confirmations

Inventory and action prompts

Hot-swappable via magnetic docking and concealed cable routing

Shared Arcane Identification System

Both MCS and hex pads utilize the same object-recognition technology

Enables imprinting/attuning of player tokens or artifacts

Supports quick session setup and personalized interface states

Allows recognition of physical items placed on the table without visible sensors or cameras

Primary I/O Hub

• 1x × USB-C (65W PD capable) [Via Magic Logo Connector]

• 1 × USB-A 3.2 [Via Magic Logo Connector]

• 1 × HDMI 2.1 [Via Magic Logo Connector]

• Wi-Fi 6E & Bluetooth 5.x

• Integrated cable-routing channels

Magic Logo Connector

A signature Prime Material Planes feature.

Magnetic connector integrated into the PMP Badge

Supports:

Power and Display for Digital Grimoires

LED Magelight attachments

Wireless charging pucks

Modular accessory plates

Programmable via ArchmageOS Dev Tools

RGB halo lighting with full color control

4.1 surround sound configuration

Four down-firing mid-tweeter speaker modules mounted in each corner of the table

Down-firing subwoofer housed in the central chamber between the primary display and the DM screen

Acoustically tuned to project off the floor for room-filling, immersive sound

Optimized for ambient soundscapes, spell effects, and cinematic gameplay

Integrated with ArchmageOS audio controls

Bluetooth and digital audio passthrough supported

Standard Configuration

CPU: TBD

GPU: TBD

RAM: TBD

Storage: TBD

Cooling: Dual-chamber airflow with whisper-quiet fans

OS: ArchmageOS (Custom Linux Base)

Creator / Digi-DM Upgrade

CPU: TBD

GPU: TBD

RAM: TBD

Storage: TBD

Frame & Body

Hand-built hardwood - Walnut, Oak, Maple, or Luxury Exotic series

Joinery - Mortise-and-tenon & reinforced cross-rails

Finish options:

Satin or Matte UVLED Hardwax Oil

Matte poly

Leg Options

• Modern Trestle

• Classic Trestle

• Custom CNC-carved Dwarven, Elven, or Art Deco motifs (PMP Lore Lines Collection)

ArchmageOS

Custom tabletop operating system designed for multi-display control

Integrated map management, fog-of-war, encounter tools, initiative tracking

Dynamic lighting, sound, and effects synced across all displays and control surfaces

Multi-viewport support for the Primary Display, DM Screen, and Digital Grimoires

Player App & Remote Tools

Companion app ecosystem for iOS, Android, and web

Supports character management, spell and inventory reference, digital dice rolls, and synced in-game actions

Real-time interaction with the table’s VTT: movement, ability checks, and item use

Remote player access for joining sessions from anywhere

Automatic player identification and syncing with table control pads and attunement system

VTT Integration

Multi-layer support for DM-only and player-only views

API hooks for future expansions, plugins, and custom modules

Future compatibility with major virtual tabletops (Foundry, Roll20, Alchemy, TaleSpire, etc.)
